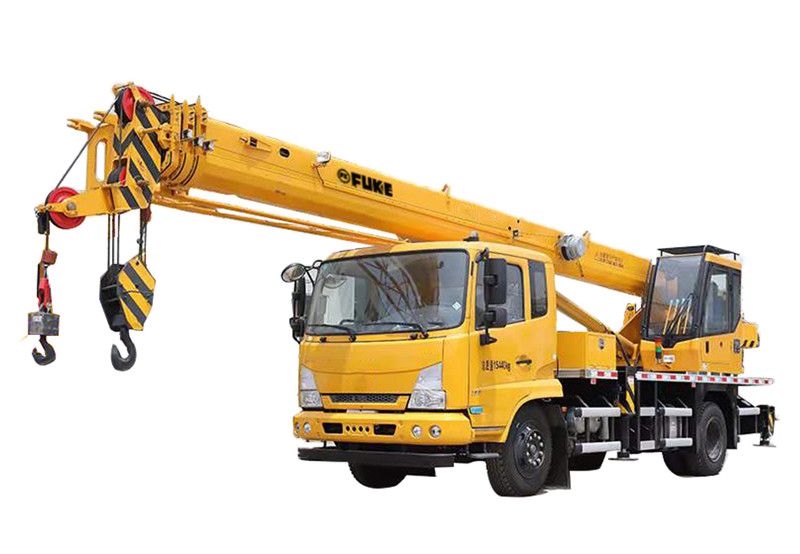

| Maximum rated total lifting capacity | 16T |
| Maximum gradeability | 48% |
| Total weight | 20600kg |
Specification Parameter
| Main winch | Single rope speed 0-120m/min,diameter/length 14mm/135m,maximum single rope pullingforce 3.2t |
| Vice winch | Single rope speed 0-120m/min,diameter/length 14mm/70m,maximum single rope pullingforce 3.2t |
| Turn around | 0-2.5 r/min |
| FLuctuation range | 40s/50s (O-80°) |
| Stretch | 40s/35s (10m-32m) |

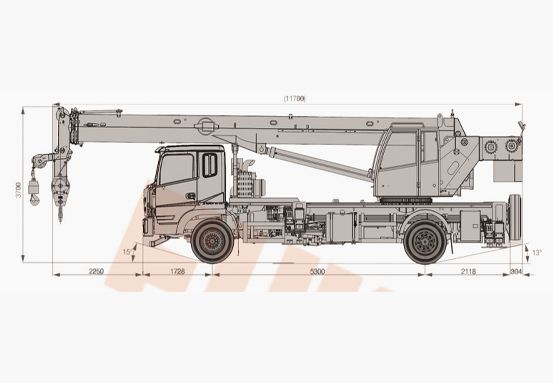

| Overall length*width*height | 11700*2500*3700 mm | |
| Wheelbase | 5300 mm | |
| Engine model | Yuchai | |
| Engine rated output power | 192/2300 Kw/rpm | |
| Engine maximum output torque | 1000/(1300-1500) N.m/rpm | |
| Total mass of the whole machine | 20600 kg | |
| Maximum travel speed | >95 km/h | |
| Minimum turning radius | 10 m | |
| Minimum ground clearance | 275 mm | |
| Approach angle | 18° | |
| Departure angle | 11° | |
| Braking distance (vehicle speed is 30km/h) | 8 m | |
| Maximum grade | 48% | |
| Fuel consumption per hundred kilometers Maximum rated total lifting capacity | 30 L16t | |
| Minimum rated range | 3 m | |
| Maximum lifting moment | 735/480 kN.m | |

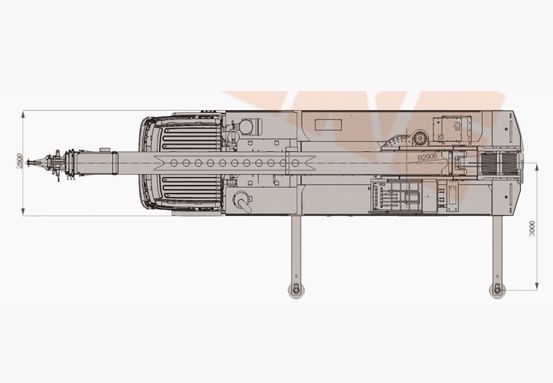

| Outrigger span (horizontal x longitudinal)Lifting height (Basic boom/longest main boom) | 6x4.98 m10.7/32.5m | |
| Boom length(Basic boom/longest main boom) | 10/32 m | |
| Maximum speed of single rope of mainwinch (no load) | >120 m/min | |
| Boom fully extended/retracted time | 40/35 s | |
| Full lifting/falling time of boom | 40/50 s | |
| Swing speedHorizontal outrigger full extension/retraction time | 2.5 r/min20/20 s | |
| Vertical outrigger full retract/release time | 20/20 s | |

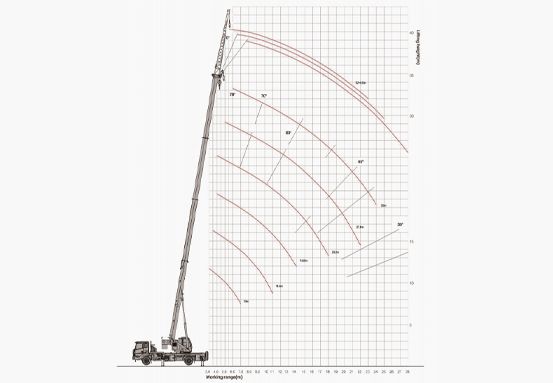

Main boom performance table
| Amplitude (m) | 10 | 14.4 | 18.8 | 23.2 | 27.6 | 32 |
| 3 | 16000 | 12200 | ||||
| 3.5 | 16000 | 12200 | 11600 | |||
| 4 | 16000 | 12200 | 11600 | 8600 | ||
| 4.5 | 15500 | 12200 | 11600 | 8600 | ||
| 5 | 12800 | 12200 | 11600 | 8400 | 6600 | |
| 5.5 | 10000 | 10300 | 10500 | 8000 | 6600 | |
| 6 | 8200 | 8500 | 8600 | 7600 | 6600 | 4600 |
| 6.5 | 6800 | 7100 | 7200 | 7200 | 6000 | 4600 |
| 7 | 5900 | 6100 | 6200 | 6350 | 5600 | 4500 |
| 8 | 4200 | 4600 | 4750 | 4850 | 4800 | 4300 |
| 9 | 3600 | 3750 | 3850 | 3900 | 3900 | |
| 10 | 2900 | 3100 | 3150 | 3200 3200 | ||
| 11 | 2350 | 2500 | 2550 | 2600 | 2600 | |
| 12 | 1900 | 2000 | 2050 | 2100 2100 | ||
| 14 | 1450 | 1500 | 1550 | 1550 | ||
| 16 | 1050 | 1100 | 1100 | 1100 | ||
| 18 | 750 | 800 | 800 | |||
| 20 | 600 | 600 | ||||
| 22 | 400 | |||||
| Magnification | 6 | 6 | 4 | 4 | 3 | 3 |
| Cylinder expansion rate | 0% | 20% | 40% | 60% | 80% | 100% |
