| Total Weight | 11000 kg |
| Standard bucket capacity | 0.3 m³ |
| Rated power | 46.3/2200 kw/rpm |
Specification Parameter
| Basic Parameters | |
| Total Weight | 11000kg |
| Standard bucket capacity | 0.3m³ |
| Performance Parameter | |
| Engine | Yanmar |
| Engine rated power | 46.3/2200kW/rpm |
| Gradeability | 35° |
| Maximum digging force of stick | 38kN |
| Maximum digging force of bucket Driving speed | 56kN |
| Main traction force | 2.6/3.9km/h |
| Platform rotation speed | 68kN |
| Platform rotation speed | 10-13 rpm |

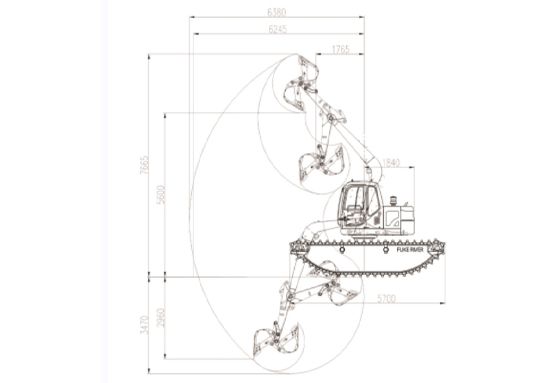

| Job Parameters | |
| Maximum digging height | 7665 mm |
| Maximum digging depth | 3470 mm |
| Maximum digging radius | 6380mm |
| Maximum ground excavation radius | 6245 mm |
| Maximum unloading height | 5600mm |
| Minimum radlus of gyration | 1840mm |
| Maximum vertical digging depth | 2960 mm |

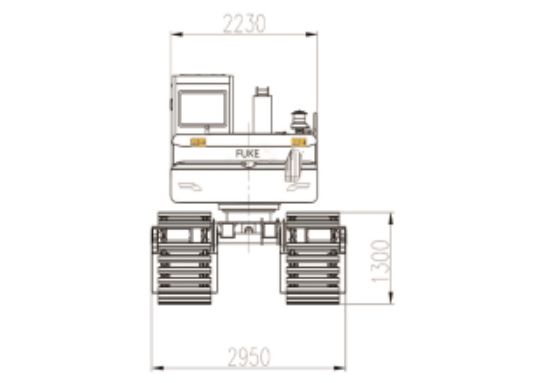

| Transport size | |
| Overall length (transport state) | 7465 mm |
| Overall width (transport state) | 2950mm |
| Overall height(transport state) | 3215mm |
| Other parameters | |
| Track width | 2230 mm |
| Track length | 5700 mm |
| Minimumground clearance | 1300mm |
| Balance weight off the ground | 1710mm |
| Radius of tail gyration | 1840mm |
| Fueltank capacity | 151L |
| Hydraulic oil tank capacity | 125L |
Specification Parameter
