Operating weight | 20000kg |
Gradeability | 30% |
Rated power | 129KW |
Rolling width | 2130mm |
Activating force | 395/220kn |
Reted rotary speed | 2000r/min |
Specification Parameter
Operating weight: | 20000 kg |
Diameter of vibrating drum: | ∅1600 mm |
Rolling width : | 2130 mm |
Activating force: | 395/220 KN |
Theoretical amplitude of vibration: | 1.9/0.9 mm |
Vibration frequency: | 30 HZ |
Moving speed Range l ll IV: | 2.5/5.0/10.5 km/h |
Gradeability: | 30% |
Rated rotation speed: | 2000 r/min |
Rated power: | 129 kw |

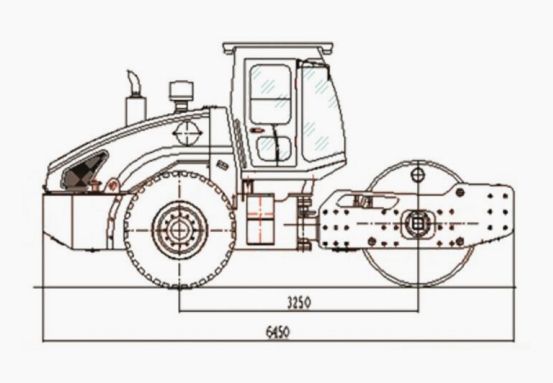

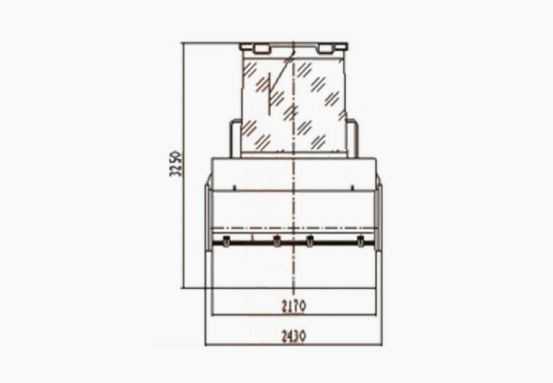

Overall dimensions L*W*H: | 6450x2430x3250 mm |
Specification Parameter
Corporate vision
FUKE is a specialist construction equipment manufacturer that focuses on developing, manufacturing and supplying of material handling equipment and heavy equipment for the global market. Based on the professional expertise of our employees, we are large enough to handle large production of various construction equipment with solutions tailored to your specific needs. Our goal is to offer the products with the highest quality at the most affordable price to serve your changing needs. We continue to strive to earn your ongoing trust with our expert support, in-depth knowledge and innovation, getting the job done with results beyond your expectation.
