| Concrete output | 2.5m3 |
| Loading ratio | 55% |
| Weight | 6600kg |
| Wheelbase | 2050mm |
| Bucket | 350L |
| Rated power | 85Kw |
Specification Parameter
| Drum capacity | 4.5m³ |
| Concrete output | 2.5m³ |
| Loading ratio | 55% |
| Rotary drum | Discharge mouth height 1.5 meters.Levelturn 270° |
| Production capacity | 4 batches in an hour; 10 cubic meters per hour |
| Engine | Yuchai ENGINE, diesel, water cooling, 4 cylinders.Rated power 85KW.2,200 revolutions per minute |
| Transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
| Climbing ability | 30% |
| Speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
| CAB | Ultra wide deluxe cab.ROPS type. |
| Hydraulic system | Open feed, two gear pump participate in action. |
| Joystick | A four-way hydraulic pilot with an electric control button controls the bucket. |
| Bucket | 350L |
| Bucket type | hydraulic gate. |
| Chute | Equipped with two removable shaft pins to increase the discharge length. |
| Water supply system | Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer. |
| Brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independ-ent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| Turn | Hydraulic steering, front wheel steering. |
| Tyre | 23.5/70-16wire tires |
| Power system | 24V |
| OIL TANK/water tank | 300L water tank. Diesel tank: 110 litres.Hydraulic tank: 110 litres. |
| Weight | 6600KG |

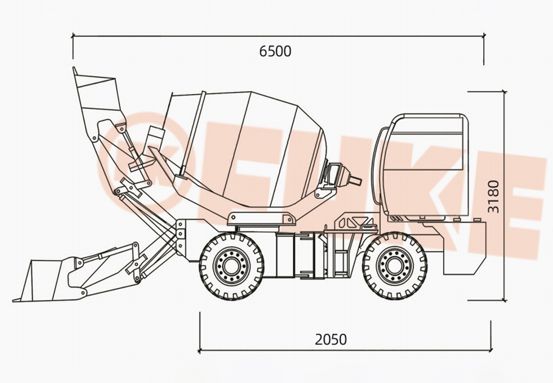

| Dimensions L*W*H | 6500mm*2400mm*3180mm |
| Wheelbase | 2050mm |
| Metering | Electronic weighing system(optional) |
Specification Parameter
