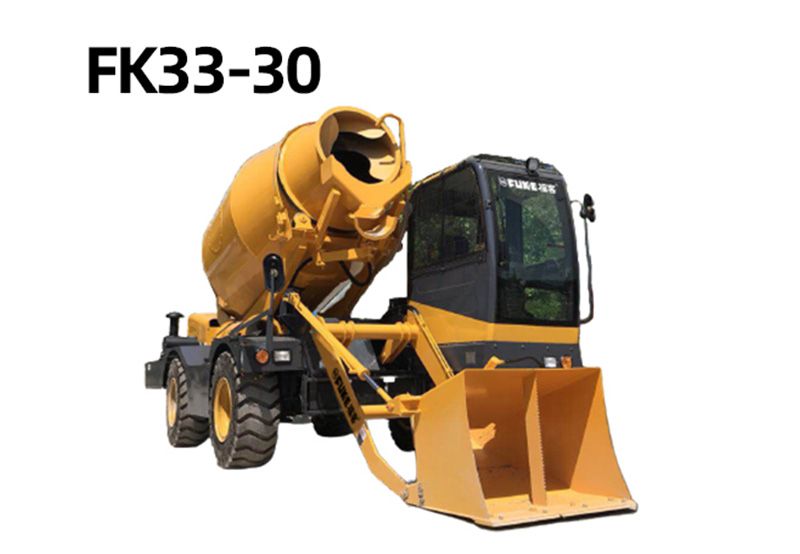

FUKE FK33-30

Concrete output3m3
Loading ratio65%
Weight6800kg
Wheel base2050mm
Bucket350L
Rated power85Kw

Specification Parameter

Drum capacity4.5m³
Concrete output3.0m³
Loading ratio65%
Rotary drumDischarge mouth height 1.5 meters.Levelturn 270°
Production capacity4-5 batches in an hour; 15 cubic meters per hour
EngineYuchai ENGINE, diesel, water cooling, 4 cylinders.Rated power 85KW.2,200 revolutions per minute
Transmission wayFull hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.
Climbing ability30%
SpeedLow speed 0-25 km/h, high speed 0-45 km/h.
CABUltra wide deluxe cab.ROPS type.
Hydraulic systemOpen feed, two gear pump participate in action.
JoystickA four-way hydraulic pilot with an electric control button controls the bucket.
Bucket350L
Bucket typehydraulic gate.
ChuteEquipped with two removable shaft pins to increase the discharge length.
Water supply systemSelf-priming hydraulic drive pump/electronic water flow monitor/high pressure washer.
Brakeinner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independ-ent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
TurnHydraulic steering, front wheel steering.
Tyre23.5/70-16wire tires
Power system24V
OIL TANK/water tank300L water tank. Diesel tank: 110 litres.Hydraulic tank: 110 litres.
Weight6800KG

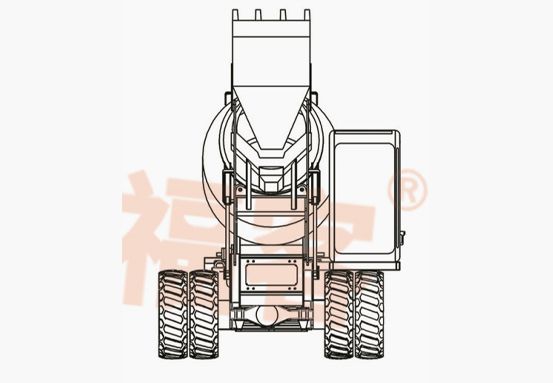

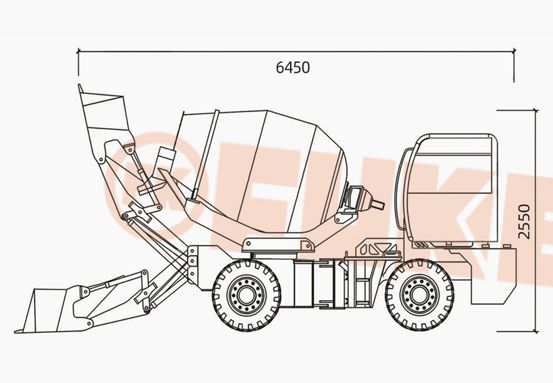

Dimensions L*W*H6500mm*2400mm*3180mm
Wheelbase2050mm
MeteringElectronic weighing system(optional)

Specification Parameter

FUKE FK33-30

FUKE FK33-30
