| Concrete output | 4m3 |
| Loading ratio | 76% |
| Weight | 7600kg |
| Wheel base | 2350mm |
| Bucket | 650L |
| Rated power | 92Kw |
Specification Parameter
| Drum capacity | 5.5m³ |
| Concrete output | 4.0m³ |
| Loading ratio | 76% |
| Rotary drum | Discharge mouth height 1.8 meters.Levelturn 290° |
| Production capacity | 4 batches in an hour.16 cubic meters per hour |
| Engine | Yuchai YC4A125Z, diesel, water cooling, 4 cylinders.2,200 revolutions per minute, rated power 92KW. |
| Transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
| Climbing ability | 30% |
| Speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
| CAB | Ultra wide deluxe cab.ROPS type. |
| Hydraulic system | Open feed, two gear pump participate in action. |
| Joystick | A fourway hydraulic pilot with an electric control button controls the bucket. |
| Bucket | 650L |
| Bucket typeChute | hydraulic gate.Equipped with two removable shaft pins to increase the discharge length. |
| Water supply system | Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer. |
| Brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| TurnTyre | Hydraulic steering, front wheel steering.16/70-20 wire tiresv |
| Power system | 24V |
| OIL TANK/water tank | 2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres. |
| Weight | 7600KG |

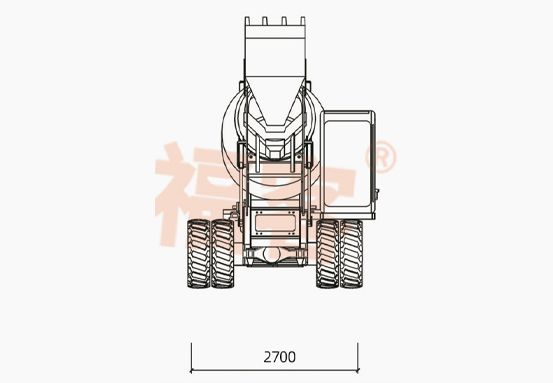

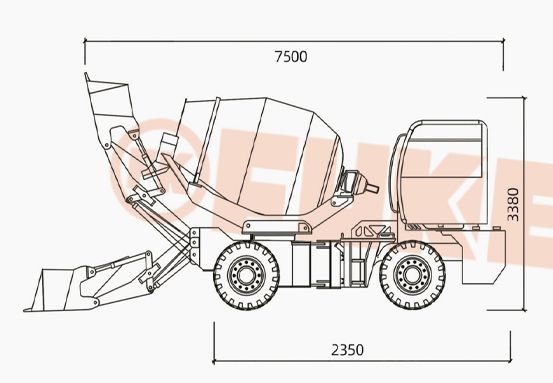

| Dimensions L*W*H | 7500mm*2700mm*3380mm |
| Wheelbase | 2350mm |
| Metering | Electronic weighing system(optional) |
Specification Parameter
