| Total Weight | 13800 kg |
| Standard bucket capacity | 0.52 m³ |
| Rated power | 86/2200 kW/rpm |
Specification Parameter
| Basic Parameters | |
| Total Weight | 13800kg |
| Standard bucket capacity | 0.52m³ |
| Standard bucket width | 934 mm |
| Performance Parameter | |
| Engine | Cummins |
| Engine rated power | 86/2200 kW/rpm |
| Gradeability | 35° |
| Maximum digging force of stick | 75.8kN |
| Maximum digging force of bucket | 106 kN |
| Driving speed | 3.1/5.0 km/h |
| Main traction force | 121 kN |
| Platform rotation speed | 11 rpm |

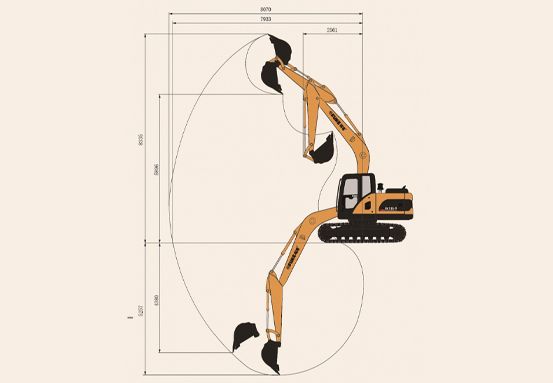

| Job Parameters | |
| Maximum digging height | 8335mm |
| Maximum digging depth | 5257mm |
| Maximum digging radius | 8070mm |
| Maximum ground excavation radius | 7933mm |
| Maximum unloading height | 5896mm |
| Minimum radius of gyration | 2561mm |
| Maximum vertical digging depth | 4380mm |

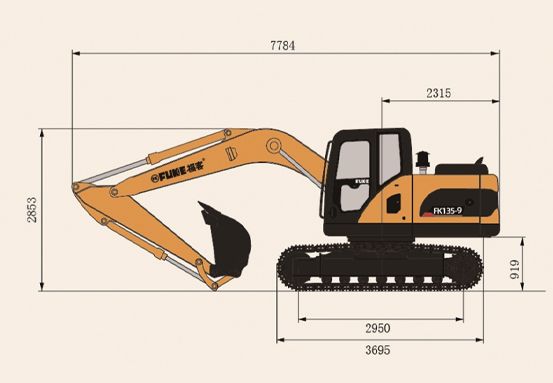

| Transport size | |
| Overall length (transport state) | 7784mm |
| Overall width (transport state) | 2530mm |
| Overall height(transport state) | 2853mm |

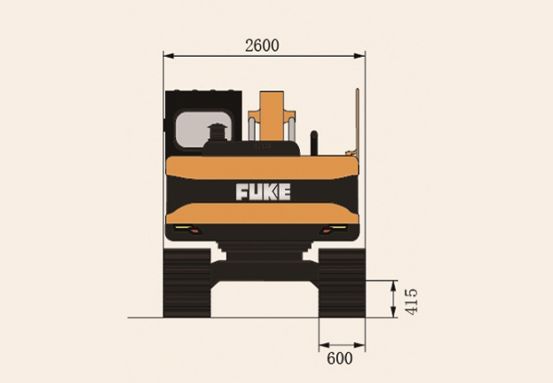

| Other parameters | |
| Track width | 2500mm |
| Track length | 3695mm |
| Track shoe width | 500mm |
| Minimum ground clearance | 415mm |
| Balance weight off the ground | 919mm |
| Radius of tail gyration | 2315mm |
| Track wheelbase | 2950mm |
| Fuel tank capacity | 270 L |
| Hydraulic oil tank capacity | 105 L |
Specification Parameter
