| Total Weight | 14050 kg |
| Standard bucket capacity | 0.62 m³ |
| Rated power | 86/2200 kW/rpm |
Specification Parameter
| Basic Parameters | |
| Total Weight | 14050 kg |
| Standard bucket capacity | 0.62m³ |
| Standard bucket width | 945 mm |
| Performance Parameter | |
| Engine | Cummins |
| Engine rated power | 86/2200 kW/rpm |
| Gradeability | 35° |
| Maximum digging force of stick | 75.1 kN |
| Maximum digging force of bucket | 103.5 kN |
| Driving speed | 3.1/5.0 km/h |
| Main traction force | 121 kN |
| Platform rotation speed | 11 rpm |

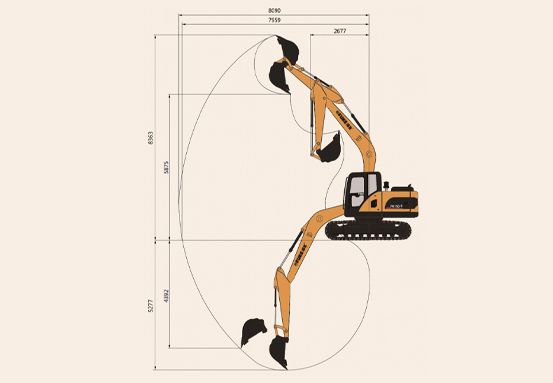

| Job Parameters | |
| Maximum digging height | 8363 mm |
| Maximum digging depth | 5277 mm |
| Maximum digging radius | 8090 mm |
| Maximum ground excavation radius | 7959 mm |
| Maximum unloading height | 5875 mm |
| Minimum radius of gyration | 2677mm |
| Maximum vertical digging depth | 4392 mm |

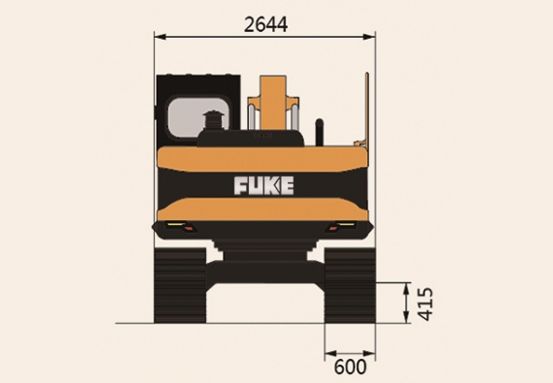

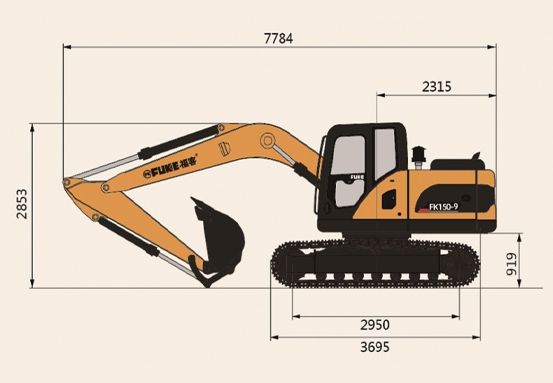

| Transport size | |
| Overall length (transport state) | 7784 mm |
| Overall width (transport state) | 2644 mm |
| Overall height(transport state) | 2853 mm |
| Other parameters | |
| Track width | 2500 mm |
| Track length | 3695 mm |
| Track shoe width | 600 mm |
| Minimum ground clearance | 415 mm |
| Balance weight off the ground | 919 mm |
| Radius of tail gyration | 2315mm |
| Track wheelbase | 2950 mm |
| Fuel tank capacity | 270 L |
| Hydraulic oil tank capacity | 105 L |
Specification Parameter
