| Total Weight | 1700 kg |
| Standard bucket capacity | 0.05 m³ |
| Rated power | 13.3/2200 kW/rpm |
Specification Parameter
Basic Parameters
| Total Weight | 1700kg |
| Standard bucket capacity | 0.05m³ |
Performance Parameter
| Engine | Yanmar |
| Engine rated power | 13.3/2200 kW/rpm |
| Gradeability | 30° |
| Maximum digging force of stick | 8 kN |
| Bucket excavation | 12.5 kN |
| Driving speed | 2.2 km/h |
| Platform rotation speed | 9-11 rpm |

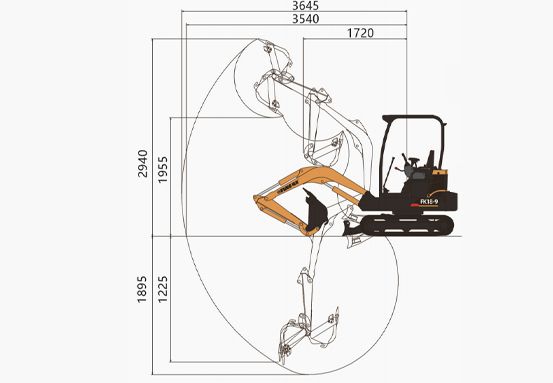

Job Parameters
| Maximum digging height | 2940 mm |
| Maximum digging depth | 1895 mm |
| Maximum digging radius | 3645 mm |
| Maximum ground excavation radius | 3540 mm |
| Maximum unloading height | 1955 mm |
| Minimum radius of gyration | 1720 mm |
| Maximum vertical digging depth | 1225mm |

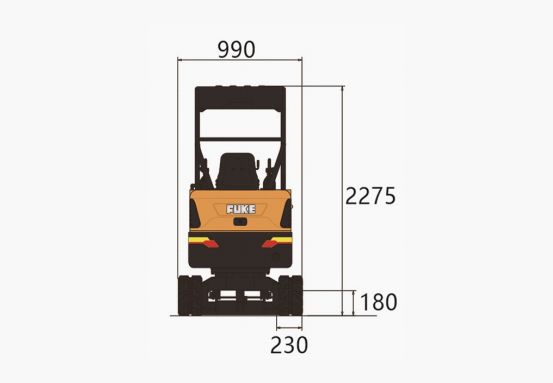

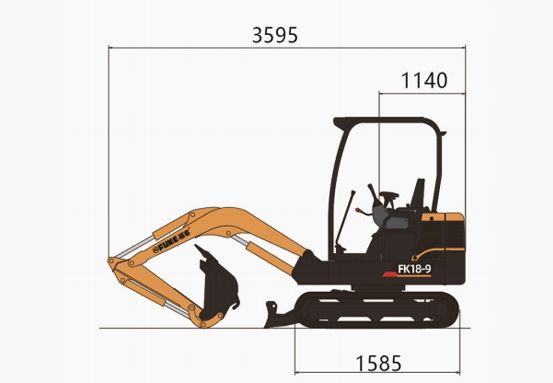

Transport size
| Overall length (transport state) | 3595 mm |
| Overall width (transport state) | 990 mm |
| Overall height(transport state) | 2275 mm |
Other parameters
| Track width | 990 mm |
| Track length | 1585 mm |
| Track shoe width | 230 mm |
| Minimum ground clearance | 180 mm |
| Balance weight off the ground | 460 mm |
| Radius of tail gyration | 1140 mm |
| Fuel tank capacity | 20L |
| Hydraulic oil tank capacity | 22L |
Specification Parameter
