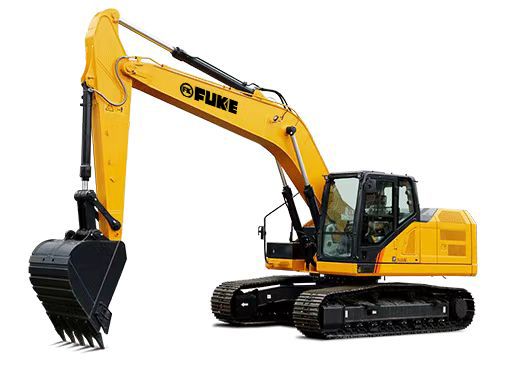

FUKE FK215-9

Total Weight22300 kg
Standard bucket capacity0.9-1.1m³
Rated power140/2200  kW/rpm



Specification Parameter

Basic Parameters
Total Weight14050  kg
Standard bucket capacity0.9-1.1m³


Performance Parameter
EngineYuchai
Engine rated power140/2200   kW/rpm
Gradeability35°
Maximum digging force of stick109 kN
Maximum digging force of bucket150 kN
Driving speed3.2/5.0   km/h
Platform rotation speed11-13  rpm

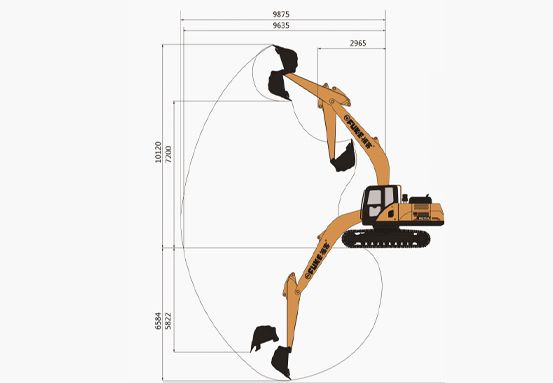

Job Parameters
Maximum digging height10120  mm
Maximum digging depth6584  mm
Maximum digging radius9875  mm
Maximum ground excavation radius9635  mm
Maximum  unloading  height7200  mm
Minimum radius of gyration2965  mm
Maximum vertical digging depth5822  mm

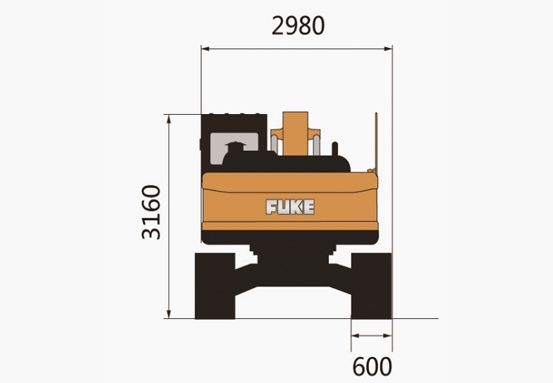

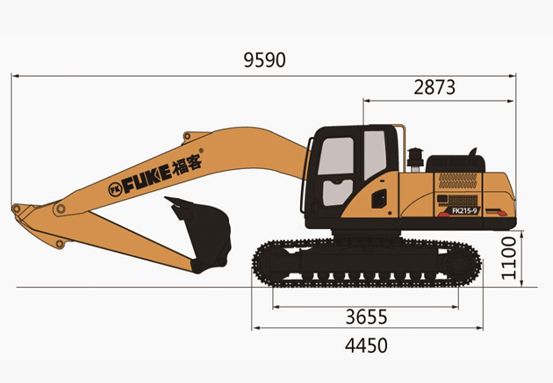

Transport size
Overall length (transport state)9590  mm
Overall width (transport state)2980 mm
Overall  height(transport state)3160  mm


Other parameters
Track width2980  mm
Track length4550  mm
Track shoe width600  mm
Minimum ground clearance470 mm
Balance weight off the ground1100  mm
Radius of tail gyration2873  mm
Track  wheelbase3655  mm
Fuel tank capacity325 L
Hydraulic oil tank capacity200L
