| Total Weight | 23100 kg |
| Standard bucket capacity | 1.08 m³ |
| Rated power | 124/2050 kW/rpm |
Specification Parameter
| Basic Parameters | |
| Total Weight | 23100kg |
| Standard bucket capacity | 1.08m³ |
| Standard bucket width | 134mm |
| Performance Parameter | |
| Engine | Cummins |
| Engine rated power | 124/2050 kW/rpm |
| Gradeability | 35° |
| Maximum digging force of stick | 102 kN |
| Maximum digging force of bucket | 139.3 kN |
| Driving speed | 3.4/5.2 km/h |
| Main traction force | >121 kN |
| Platform rotation speed | 13-15 rpm |

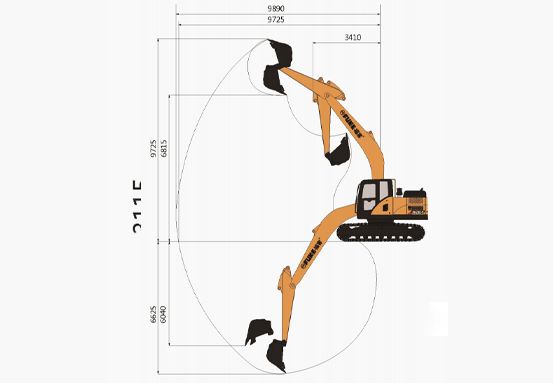

| Job Parameters | |
| Maximum digging height | 9725 mm |
| Maximum digging depth | 6625 mm |
| Maximum digging radius | 9890 mm |
| Maximum ground excavation radius | 9725 mm |
| Maximum unloading height | 6815 mm |
| Minimum radius of gyration | 3410 mm |
| Maximum vertical digging depth | 6040 mm |

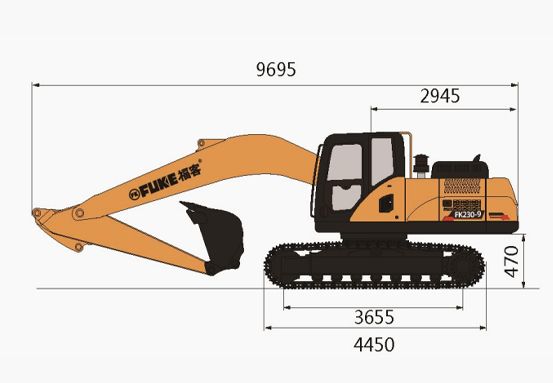

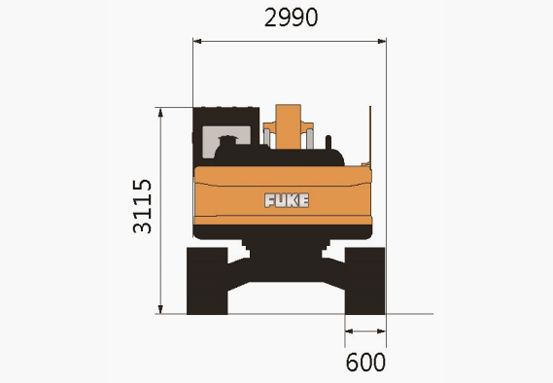

| Transport size | |
| Overall length (transport state) | 9695 mm |
| Overall width (transport state) | 2990 mm |
| Overall height(transport state) | 3115 mm |
| Other parameters | |
| Track width | 2990 mm |
| Track length | 4450 mm |
| Track shoe width | 600 mm |
| Minimum ground clearance | 470 mm |
| Balance weight off the ground | 1070 mm |
| Radius of tail gyration | 2945 mm |
| Track wheelbase | 3655 mm |
| Fuel tank capacity | 350L |
| Hydraulic oil tank capacity | 210L |
