| Total Weight | 3800 kg |
| Standard bucket capacity | 0.12 m³ |
| Rated power | 30.7/2200 kW/rpm |
Specification Parameter
Basic Parameters
| Total Weight | 3800 kg |
| Standard bucket capacity | 0.12 m³ |
Standard bucket width | 626 mm |
Performance Parameter
| Engine | Kubota |
| Engine rated power | 30.7/2200 kW/rpm |
| Gradeability | 30° |
| Maximum digging force of stick | 17.4 kN |
Maximum digging force of bucket | 22.19 kN |
| Driving speed | 3.4/4.8 km/h |
Main traction force | 34-19 kN |
| Platform rotation speed | 11-13 rpm |

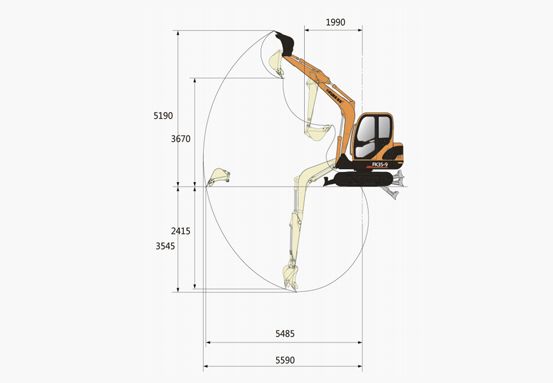

Job Parameters
| Maximum digging height | 5190 mm |
| Maximum digging depth | 3545 mm |
| Maximum digging radius | 5590 mm |
| Maximum ground excavation radius | 5485 mm |
| Maximum unloading height | 3670 mm |
| Minimum radius of gyration | 1990 mm |
| Maximum vertical digging depth | 2415 mm |

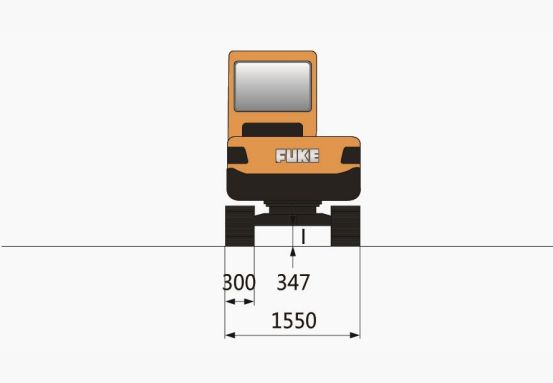

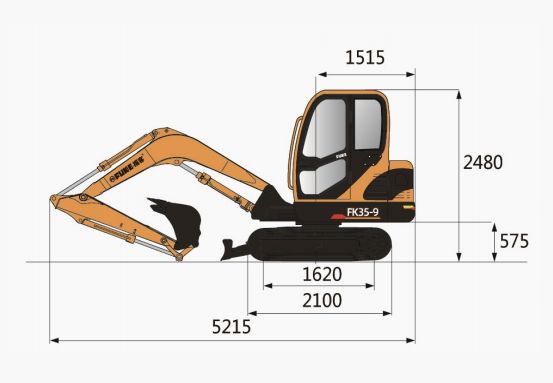

Transport size
| Overall length (transport state) | 5215 mm |
| Overall width (transport state) | 1550 mm |
| Overall height(transport state) | 2480 mm |
Other parameters
| Track width | 1522 mm |
| Track length | 2100 mm |
| Track shoe width | 300 mm |
| Minimum ground clearance | 347 mm |
| Balance weight off the ground | 575 mm |
| Radius of tail gyration | 1515 mm |
| Track wheelbase | 1620 mm |
| Fuel tank capacity | 48.5L |
| Hydraulic oil tank capacity | 54.5L |
Specification Parameter
