| Total Weight | 36000 kg |
| Standard bucket capacity | 1.6 m³ |
| Rated power | 186/2000 kw/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 36000kg | |
| Standard bucket capacity | 1.6m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 186/2000 | |
| Volume of Fuel Tank | 595L | |
| Walking Speed | 5.2/3.3 km/h | |
| Ritary Speed | 10.6 r/min | |
| Climbing Capacity | 70% | |
| Bucket Digging Force | 208 KN | |

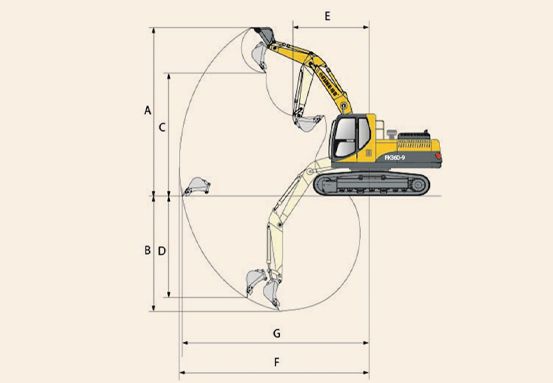

| Job Parameters | ||
| Maximum digging height | 10200 mm | A |
| Maximum digging depth | 7370 mm | B |
| Maximum unloading height | 7135 mm | C |
| Maximum vertical digging distance | 6380 mm | D |
| Minimum radius of gyration | 4265 mm | E |
| Maximum digging distance | 11100mm | F |
| Max.excavation depth when excavating 2.52mlevel | 7190 mm | |

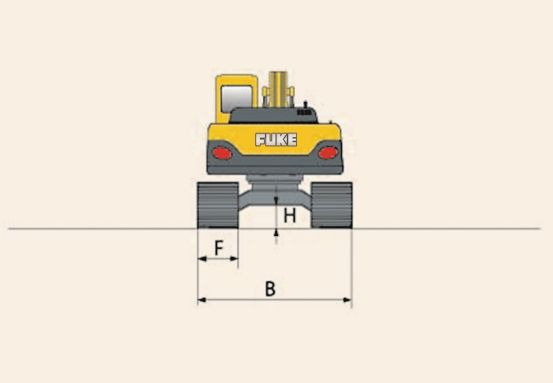

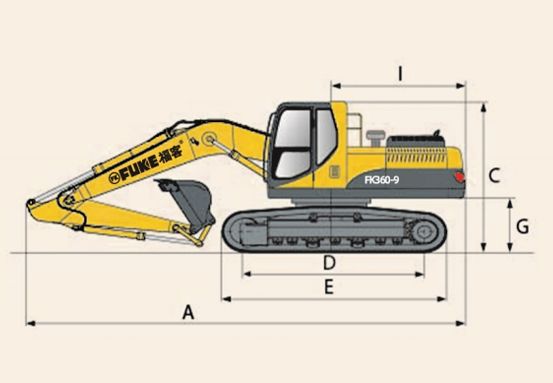

| Transport size | ||
| Overall length (transport state) | 11260 mm | A |
| Overall width (transport state) | 2995 mm | B |
| Overall height(transport state) | 3280 mm | C |
| Other parameters | ||
| Model | FK360-9 | |
| Length of track on ground | 3700 mm | |
| T rack length | 4622 mm | E |
| Track width | 2590 mm | F |
| Counterweight ground clearance | 1210mm | G |
| Minimum ground clearance | 498 mm | H |
| Radius of tail gyration | 3600 mm |
