| Total Weight | 48800 kg |
| Standard bucket capacity | 2.3 m³ |
| Rated power | 54/1800 kW/r/min |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 48800 kg | |
| Standard bucket capacity | 2.3m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 254/1800 kW/r/min | |
| Gradeability | 70% | |
| Volume of fuel tank | 650L | |
| Bucket excavation | 276 kN | |
| Driving speed | 3.0-4.8 km/h | |
| Platform rotation speed | 8.6 r/min | |

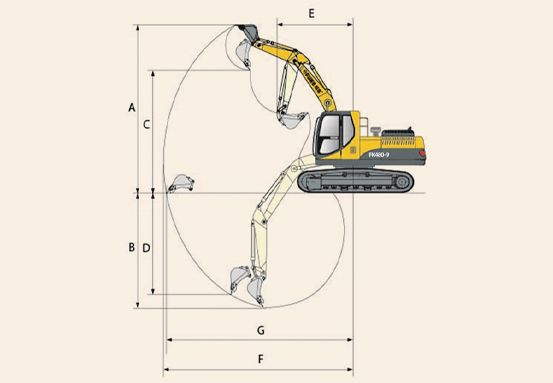

| Job Parameters | ||
| Maximum digging height | 10910 mm | A |
| Maximum digging depth | 7810 mm | B |
| Maximum unloading height | 7550 mm | C |
| Maximum vertical digging distance | 6800 mm | D |
| Minimum radius of gyration | 4825 mm | E |
| Maximum digging distance | 12025 mm | F |
| Maximum ground excavation distance | 11815 mm | G |

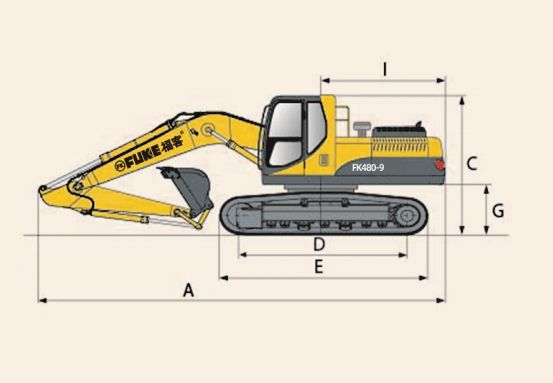

| Transport size | ||
| Overall length (transport state) | 12180 mm | A |
| Overall width (transport state) | 3340 mm | B |
| Overall height(transport state) | 3280 mm | C |

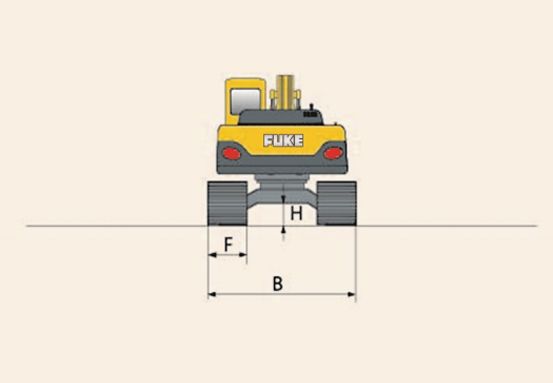

| Other parameters | ||
| Bucket width | 1463 mm | |
| Wheelbase | 4030 mm | D |
| Track length | 4961 mm | E |
| Track width | 600mm | F |
| Counterweight ground clearance | 1244mm | G |
| Minimum ground clearance | 530 mm | H |
| Radius of tail gyration | 3308 mm |
Specification Parameter
