| Total Weight | 51000 kg |
| Standard bucket capacity | 2.4-3 m³ |
| Rated power | 298/2000 kW/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 51000 kg | |
| Standard bucket capacity | 2.4-3 m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 298/2000 kW/rpm | |
| Working weight of the whole machine | 50000 kg | |
| Volume of fuel tank | 620 L | |
| Hydraulic oil tank | 390L | |
| Hydraulic pump | Original(Korea Import) | |
| Control valve | Original(Korea Import) | |

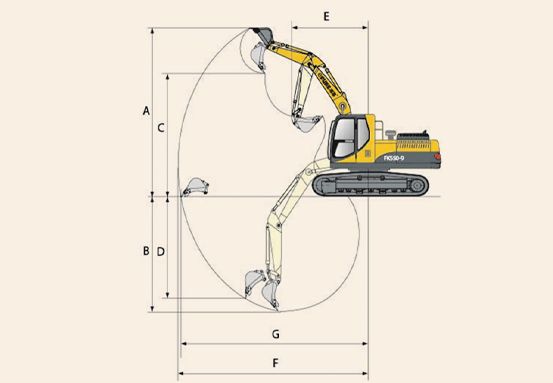

| Job Parameters | ||
| Maximum digging height | 10940 mm | A |
| Maximum digging depth | 7340 mm | B |
| Maximum unloading height | 7760 mm | C |
| Maximum vertical digging distance | 11700 mm | D |
| Total track length | 5465 mm | |
| Track plate width | 600 mm | |
| Ground clearance of counterweight | 1460 mm | |

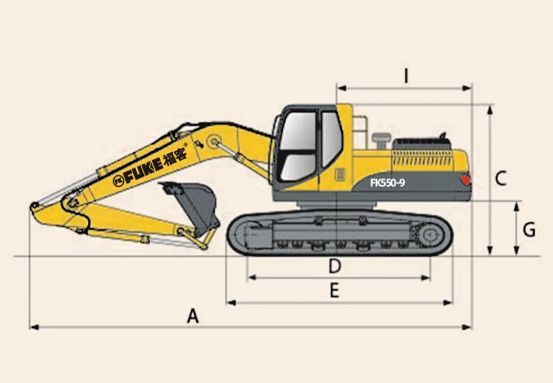

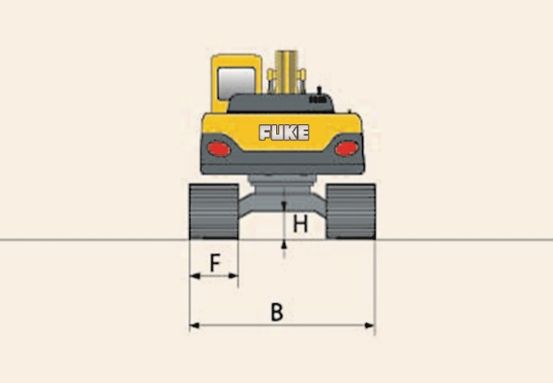

| Transport size | ||
| Overall length (transport state) | 12100 mm | A |
| Overall width (transport state) | 3340 mm | B |
| Overall height(transport state) | 3705 mm | C |
| Other parameters | ||
| Rotation motor | Original(Korea lmport) | |
| Traveling motor | Original(Korea lmport) | |
| Heat dissipation system | Split cooling system |
Specification Parameter
