| Total Weight | 85000 kg |
| Standard bucket capacity | 5 m³ |
| Rated power | 375/1800 kW/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 85000 kg | |
| Standard bucket capacity | 5m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 375/1800 kW/rpm | |
| Fuel tank volume | 1250L | |
| Traveling speed (high/low) Rotation speed | 4.6/2.8 km/h | |
| Climbing capacity | 7.1 r/min 35/70% | |
| Grounding specific pressure | 489 kpa | |

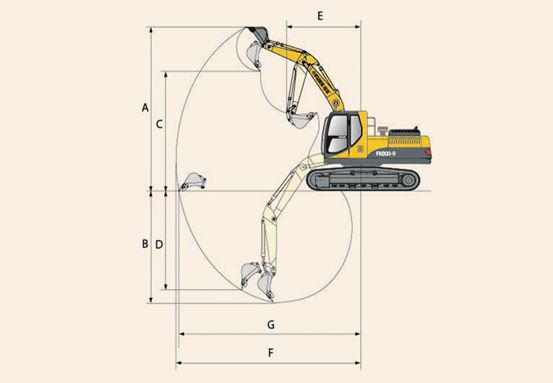

| Job Parameters | ||
| Counterweight clearance from the ground | 1525 mm | |
| Tail turning radius | 5090 mm | |
| Track ground length | 4730 mm | |
| Track length | 5975 mm | |
| Track gauge | 2760 mm | |
| Track width | 3400/4000 mm | |
| Track plate width | ||

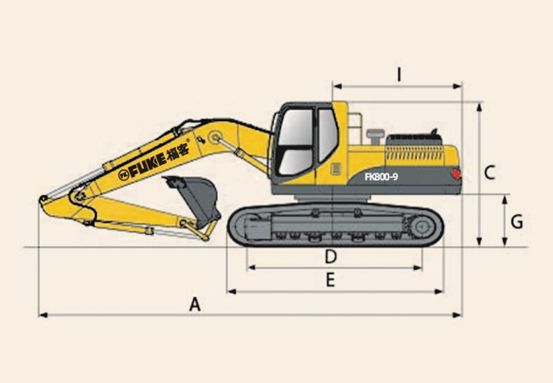

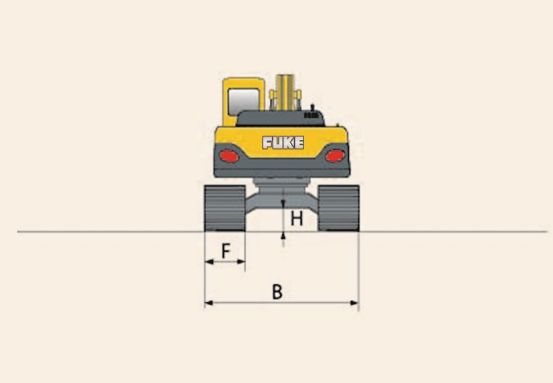

| Transport size | ||
| Overall length (transport state) | 18200 mm | A |
| Overall width (transport state) | 3560 mm | B |
| Overall height(transport state) | 3515 mm | C |
| Other parameters | ||
| Turntable width(mm) | 3830 | |
| Bucket bar length(mm) | 10 | |
| Length of moving arm(mm) | 6 | |
| Bucket digging force (KN)ISO | 341 | |
| Bucket digging force (KN)ISO | 307 | |
| Hydraulic pump model | K3V280 | |
| Maximum flow rate | 436×2 | |
| working pressure | 31.4(32.3) |
Specification Parameter
