| Rated capacity | 12000kg |
| Service weight | 14500kg |
| Rated output | 110/2200kW/rpm |
Specification Parameter

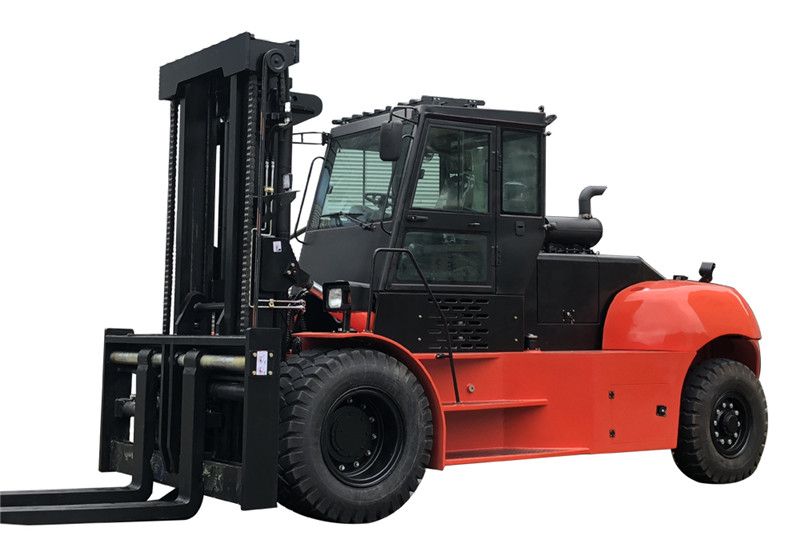

| Model | FK11-12T | |
| Power Type | Diesel | |
| Rated Capacity | 12000 kg | |
| Load Centre | 600 mm | |
| Service Weight | 14500 kg | |
| Tyre Size(Front) | 11.00-20-16PR | |
| Tyre Size(Rear) | 9.00-20 | |

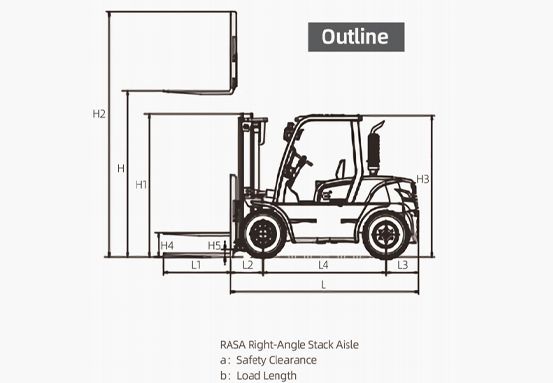

| Front Tread | 1600 mm | W1 |
| Rear Tread | 1700 mm | W2 |
| Wheelbase | 3200 mm | L4 |
| Fork Size(LxWxT) | 1520×180×100 mm | L1 |
| Mast Tilt Angle (F/R) | 6/12 deg | α/β |
| Lift Height | 3000 mm | H |
| Mast Lowered Height | 3080 mm | H1 |
| Free Lift Height | 230 mm | H5 |
| Mast Extended Height | 4500 mm | H2 |
| Length to Face of Fork | 4685 mm | L |
| Overall width | 2200 mm | W |
| Overhead Guard Height | 2540 mm | H3 |
| Front Overhang | 754 mm | L2 |
| Rear Overhang | 730 mm | L3 |
| Turning Radius(outside) | 4700 mm | r |
| Ground Clearance(Bottom at mast) | 230 mm | H4 |
| Min. Intersecting aisle | 4200 mm | Ra |

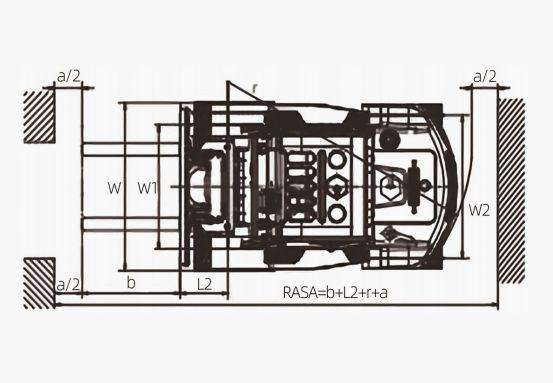

| Min. Right angle stacking aisle width | 7190 mm | RASA |
| Max. Travel Speed (Full load/No load) | 28/30 km/h | |
| Lifting Speed(Full load/No load) | 270/350 mm/s | |
| Lowering Speed (Full load/No load) | ≤600 /≥300 mm/s | |
| Max. Gradeability(Full load) | 20% | |
| Engine Model | Yuchai | |
| Rated output/r.p.m | 110/2200 kw/rpm | |
| Rated torque/r.p.m | 600/1600-1800 Nm/rpm | |
| No. of cylinder | 6 | |
| Bore x stroke | 105×125 mm | |
| Displacement | 6.494L | |
| Fuel Tank Capacity | 150L | |
| Battery(Vollage/capacity) | 2*12/80V/Ah | |
Specification Parameter
