| Rated capacity | 2000kg |
| Service weight | 3540kg |
| Rated output | 36.8/2650kW/rpm |

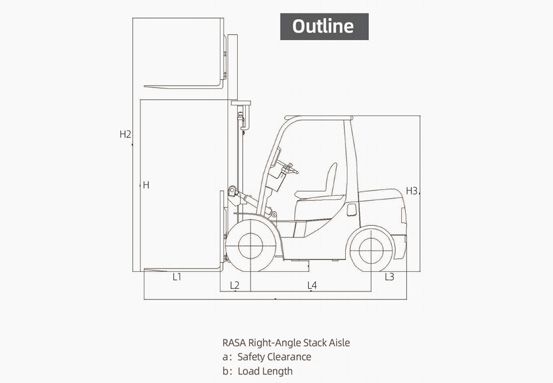

Specification Parameter
| Model | FK11-2T | |
| Power Type | Diesel | |
| Rated Capacity | 2000 kg | |
| Load Centre | 500 mm | |
| Service Weight | 3540 kg | |
| Tyre Size(Front) | 7.00-12-12PR | |
| Tyre Size(Rear) | 6.00-9-10PR | |

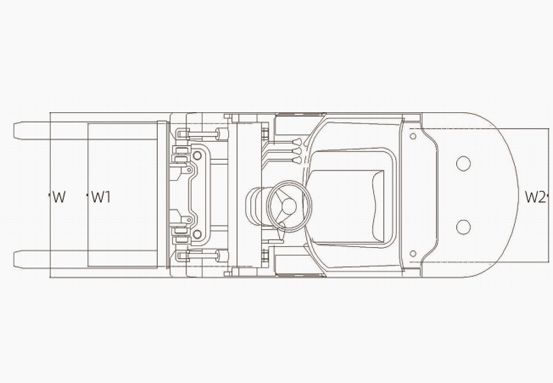

| Front Tread | 970 mm | W1 |
| Rear Tread | 970 mm | W2 |
| Wheelbase | 1600 mm | L4 |
| Fork Size(LxWxT) | 1070×120×40 mm | L1 |
| Mast Tilt Angle (F/R) | 6/12 deg | α/β |
| Lift Height | 3000 mm | H |
| Mast Lowered Height | 2055 mm | H1 |
| Free Lift Height | 120 mm | H5 |
| Mast Extended Height | 4070 mm | H2 |
| Length to Face of Fork | 2595 mm | L |
| Overall width | 1150 mm | W |
| Overhead Guard Height | 2130 mm | H |
| Front Overhang | 3465 mm | L2 |
| Rear Overhang | 530 mm | L3 |
| Turning Radius(outside) | 2290 mm | r |
| Ground Clearance(Bottom at mast) | 110 mm | H4 |
| Min. Intersecting aisle | 2380 mm | Ra |
| Min. Right angle stacking aisle width | 3975 mm | RASA |
| Max. Travel Speed (Full load/No load) | 18/19 km/h | |
| Lifting Speed(Full load/No load) | 530/570 mm/s | |
| Lowering Speed (Full load/No load) | ≤600 /≥300 mm/s | |
| Max. Gradeability(Full load) | 20% | |
| Engine Model | Yuchai | |
| Rated output/r.p.m | 36.8/2650 kw/rpm | |
| Rated torque/r.p.m | 156/1700-1900 Nm/rpm | |
| No. of cylinder | 4 | |
| Bore x stroke | 90×105 mm | |
| Displacement | 2.67L | |
| Fuel Tank Capacity | 60L | |
| Battery(Vollage/capacity) | 12/80V/Ah | |
Specification Parameter
