| Rated capacity | 3000kg |
| Service weight | 4250kg |
| Rated output | 36.8/2650kW/rpm |
Specification Parameter
| Model | FK11-3T | |
| Power Type | Diesel | |
| Rated Capacity | 3000 kg | |
| Load Centre | 500 mm | |
| Service Weight | 4250 kg | |
| Tyre Size(Front) | 28x9-15-14PR | |
| Tyre Size(Rear) | 6.50-10-10PR | |

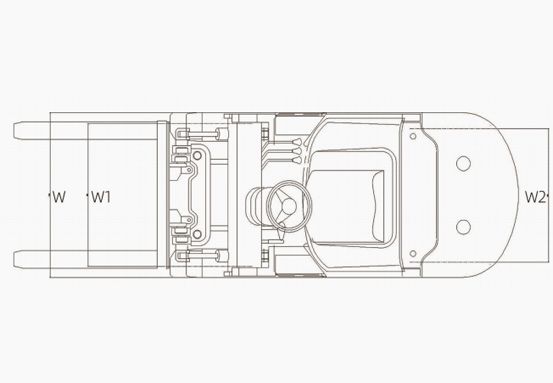

| Front Tread | 1000 mm | W1 |
| Rear Tread | 970 mm | W2 |

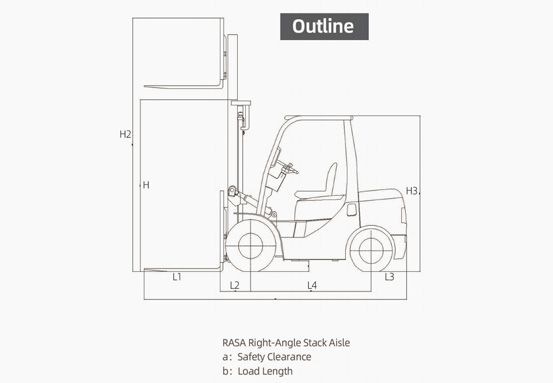

| Wheelbase | 1700 mm | L4 |
| Fork Size(LxWxT) | 1070×125×45 mm | L1 |
| Mast Tilt Angle (F/R) | 6/12 deg | α/β |
| Lift Height | 3000 mm | H |
| Mast Lowered Height | 2115 mm | H1 |
| Free Lift Height | 125 mm | H5 |
| Mast Extended Height | 4150 mm | H2 |
| Length to Face of Fork | 2730 mm | L |
| Overall width | 1225 mm | W |
| Overhead Guard Height | 2150 mm | H3 |
| Front Overhang | 480 mm | L2 |
| Rear Overhang | 550 mm | L3 |
| Turning Radius(outside) | 2420 mm | r |
| Ground Clearance(Bottom at mast) | 140 mm | H4 |
| Min. Intersecting aisle | 2490 mm | Ra |
| Min. Right angle stacking aisle width | 4110 mm | RASA |
| Max. Travel Speed (Full load/No load) | 19/20 km/h | |
| Lifting Speed(Full load/No load) | 510/550 mm/s | |
| Lowering Speed (Full load/No load) | ≤600 /≥300 mm/s | |
| Max. Gradeability(Full load) | 20% | |
| Engine Model | Yuchai | |
| Rated output/r.p.m | 36.8/2650 kw/rpm | |
| Rated torque/r.p.m | 156/1700-1900 Nm/rpm | |
| No. of cylinder | 4 | |
| Bore x stroke | 90×105 mm | |
| Displacement | 2.67L | |
| Fuel Tank Capacity | 60L | |
| Battery(Vollage/capacity) | 12/80V/Ah | |
Specification Parameter
