| Rated capacity | 4000kg |
| Service weight | 6200kg |
| Rated output | 60/2200kW/rpm |
Specification Parameter
| Model | FK11-4T | |
| Power Type | Diesel | |

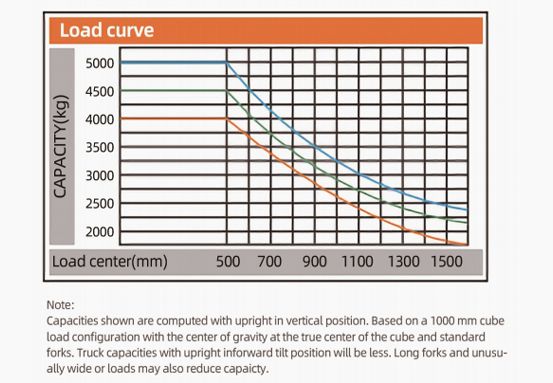

| Rated Capacity | 4000 kg | |
| Load Centre | 500 mm | |
| Service Weight | 6200kg | |
| Tyre Size(Front) | 3.00-15-18P | |
| Tyre Size(Rear) | 7.00-12-12PR | |

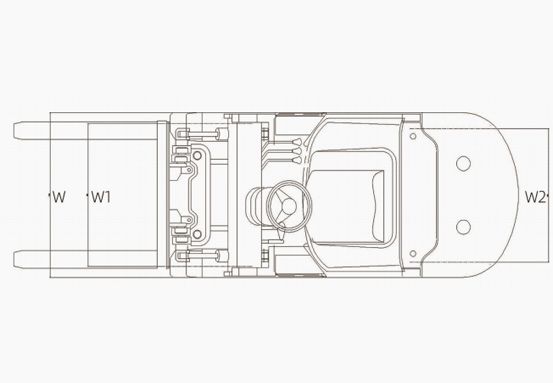

| Front Tread | 1180 mm | W1 |
| Rear Tread | 1190 mm | W2 |
| Wheelbase | 2100 mm | L4 |
| Fork Size(LxWxT) | 1070×150×55 mm | L1 |
| Mast Tilt Angle (F/R) | 6/12 deg | α/β |

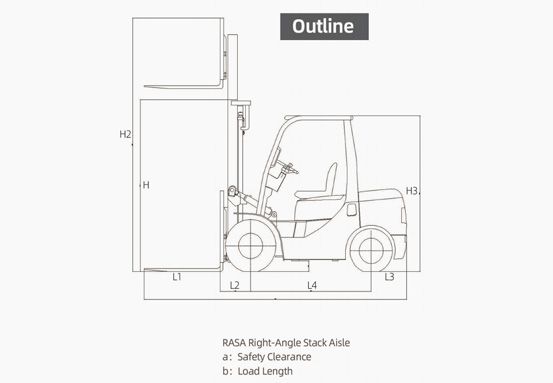

| Lift Height | 3000 mm | H |
| Mast Lowered Height | 2330 mm | H1 |
| Free Lift Height | 150 mm | H5 |
| Mast Extended Height | 4165 mm | H2 |
| Length to Face of Fork | 3260 mm | L |
| Overall width | 1460 mm | W |
| Overhead Guard Height | 2340 mm | H3 |
| Front Overhang | 579 mm | L2 |
| Rear Overhang | 580 mm | L3 |
| Turning Radius(outside) | 2910 mm | r |
| Ground Clearance(Bottom at mast) | 150 mm | H4 |
| Min. Intersecting aisle | 2920 mm | Ra |
| Min. Right angle stacking aisle width | 4740 mm | RASA |
| Max. Travel Speed (Full load/No load) | 19/20 km/h | |
| Lifting Speed(Full load/No load) | 420/430mm/s | |
| Lowering Speed (Full load/No load) | ≤600 /≥300 mm/s | |
| Max. Gradeability(Full load) | 20% | |
| Engine Model | Yuchai | |
| Rated output/r.p.m | 60/2200 kw/rpm | |
| Rated torque/r.p.m | 300/1600-1800 Nm/rpm | |
| No. of cylinder | 4 | |
| Bore x stroke | 98×115 mm | |
| Displacement | 3.47L | |
| Fuel Tank Capacity | 130L | |
| Battery(Vollage/capacity) | 2x12/80 V/Ah | |
Specification Parameter
