| Rated capacity | 5000kg |
| Service weight | 8150kg |
| Rated output | 85/2200kW/rpm |
Specification Parameter
| Model | FK11-5T | |
| Power Type | Diesel | |
| Rated Capacity | 5000 kg | |
| Load Centre | 600 mm | |
| Service Weight | 8150 kg | |
| Tyre Size(Front) | 8.25-15-14PR | |
| Tyre Size(Rear) | 8.25-15-14PR | |

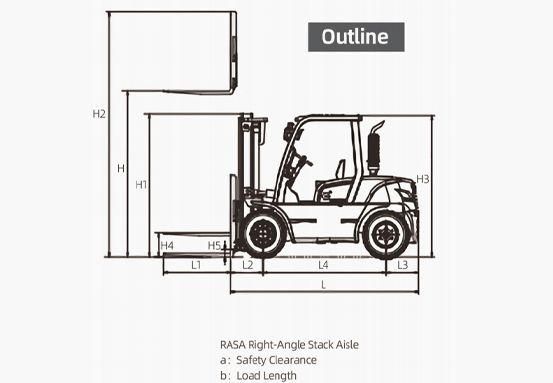

| Front Tread | 1470 mm | W1 |
| Rear Tread | 1700 mm | W2 |
| Wheelbase | 2250 mm | L4 |
| Fork Size(LxWxT) | 1220×150×60 mm | L1 |
| Mast Tilt Angle (F/R) | 6/12 deg | α/β |
| Lift Height | 3000 mm | H |
| Mast Lowered Height | 2500 mm | H1 |
| Free Lift Height | 200 mm | H5 |
| Mast Extended Height | 4415 mm | H2 |
| Length to Face of Fork | 3440 mm | L |
| Overall width | 2010 mm | W |
| Overhead Guard Height | 2430 mm | H3 |
| Front Overhang | 590 mm | L2 |
| Rear Overhang | 600 mm | L3 |
| Turning Radius(outside) | 3250 mm | r |
| Ground Clearance(Bottom at mast) | 200 mm | H4 |
| Min. Intersecting aisle | 2950 mm | Ra |

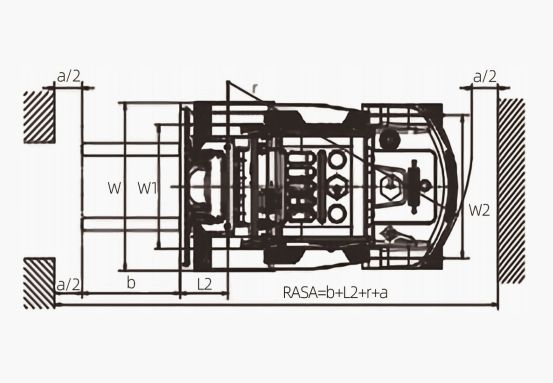

| Min. Right angle stacking aisle width | 5260 mm | RASA |
| Max. Travel Speed (Full load/No load) | 26/30 km/h | |
| Lifting Speed(Full load/No load) | 500/550 mm/s | |
| Lowering Speed (Full load/No load) | ≤600 /≥300 mm/s | |
| Max. Gradeability(Full load) | 20% | |
| Engine Model | Yuchai | |
| Rated output/r.p.m | 85/2200 kw/rpm | |
| Rated torque/r.p.m | 460/1400-1500 Nm/rpm | |
| No. of cylinder | 4 | |
| Bore x stroke | 110×125 mm | |
| Displacement | 4.75L | |
| Fuel Tank Capacity | 125L | |
| Battery(Vollage/capacity) | 2*12/80V/Ah | |
Specification Parameter
