| Rated capacity | 2250kg |
| Service weight | 9340kg |
| Rated output | 83/2000kW/rpm |
Specification Parameter
| Power type | Diesel |
| Rated capacity | 7000kg |

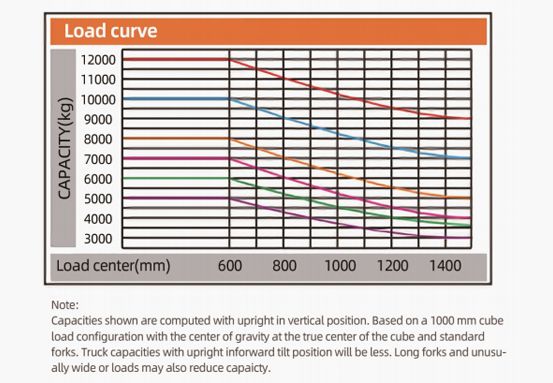

| Load center | 600mm |
| Quantity of wheels | 4x/2 |
| Type of tyres | Pneuamtic TIRE |
| Tires(Front) | 8.25-15-14PR |
| Tires(Rear) | 8.25-15-14PR |
| Driving Brake | Hydraumatic pedal |
| Parking Brake | Mechanical manual |
| Engine Model | Yuchai |
| Rated output | 83/2000kw/rpm |
| Rated torque | 450/1450N.m/rpm |
| No.of cylinder | 6-110x125 |
| Displacement | 7.13L |
| Fuel tank capacity | 140L |
| Number of speeds for transmission | 2-2 Power shift transmission |

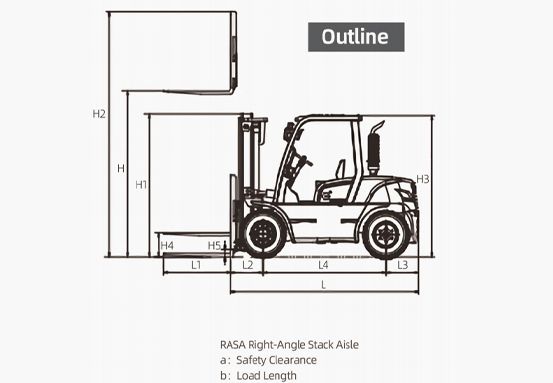

| Height of mast(standard) | 2500mm |
| Free lift height(standard) | 205mm |
| Height of Load-backrest | 1372mm |
| Distance from seat to overhead guard | 1045mm |
| Overhead guard height | 2450mm |
| Length without fork | 3440mm |
| Front overhang | 590mm |
| Rear overhang | 740mm |
| Wheel base | 2250mm |
| The height of traction pin | 395mm |
| Min. ground clearance | 200mm |
| Overall width | 1995mm |
| The distance between forks | 1840/300mm |
| Tread(front /rear) | 1470/1700mm |
| Min. Turning radius(outside) | 3370mm |
| Min. Turning radius(inside) | 210mm |

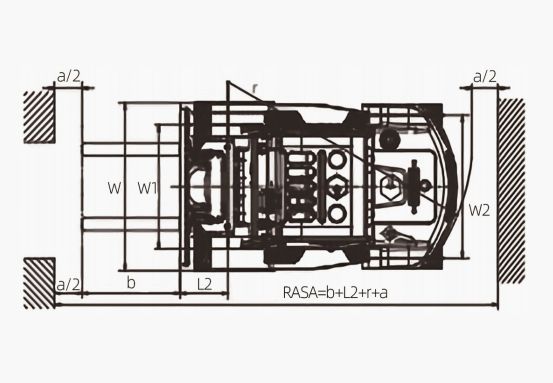

| Min. Intersecting aisle | 3040mm |
| Mast tilt angle | 6/12°deg |
| Fork size | 1220X150X70mm |
| Max. lift height of mast with Load-back-rest | 4380mm |
Specification Parameter
