| Rated capacity | 3000kg |
| Service weight | 4250kg |
| Load center | 500mm |
Specification Parameter

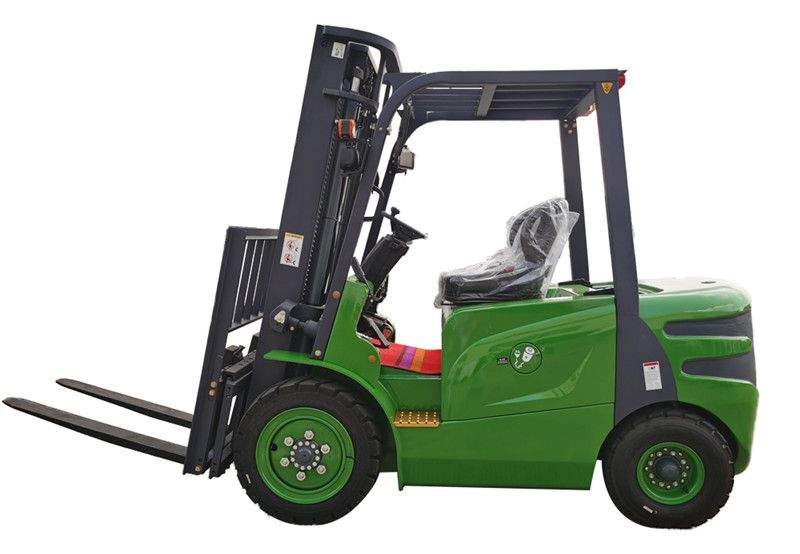

| Model | FK11E-30T |
| Rated capacity | 3000kg |
| Load center | 500 mm |
| Lift height | 3000 mm |
| Free lift height | 130 mm |
| Fork size(L*W*T) | 1070x125×45 mm |
| Fork outside spread(Min./Max.) | 300/1200 mm |
| Mast tilt range(F/R) | 6/12 deg |
| Front overhang | 490 mm |
| Length to face of fork(Without of fork) | 2680 mm |
| Length to face of fork(With fork) | 3750 mm |
| Length to face of fork(Wheel width) | 1225 mm |
| Mast lowered height | 2095 mm |
| Mast extended height | 4180 mm |
| Overhead guard height | 2130 mm |
| Turning radius | 2460 mm |
| Min. right angle aisle width | 2105 mm |
| Travel speed (unload/full load) | 18 km/h |
| Lift speed(unload/ full load) | 300 mm/s |
| Self weight | 4250 kg |
| Max. gradeability | 15% |
| Tires Front | 28×9-15-12PR |
| Tires Rear | 6.50-10-10PR |
| Tread Front | 1000 mm |
| Tread Rear | 970 mm |
| Min. ground clearance:Mast unload | 152 |
| Mast full load | 132 mm |
| Min. ground clearance:Frame unload | 158 mm |
| Frame full load | 138 mm |
| Wheelbase | 1700 mm |
| Rated power of driving motor S2 | 16 kW |
| Rated power of lifting motor S2 | 13 kW |
| Operating pressure | 17.5 mpa |
| Battery | 80V/250Ah V/Ah |
Specification Parameter
