| Total Weight | 21750 kg |
| Standard bucket capacity | 1.0m³ |
| Rated power | 135kW |
Specification Parameter
| Configuration information | ||
| Gearbox | ZF | |
| Hydraulic main valve | Japan Kawasaki | |
| Swing motor | Korea Sunjin | |
| Main pump | Japan Kawasaki(parallel pump) | |
| Main pump flow | 2×239 L/min | |
| Basic parameters | 21750 kg | |
| Total Weight | 1.0m³ | |
| Standard bucket capacity | ||
| Performance parameter | Yuchai | |
| Engine | 135 kW | |
| Engine rated power | 70%(35°) | |
| Gradeability | 100.3 kN | |
| Maximum digging force of stick | 132.3 kN | |
| Bucket excavation | 30 km/h | |
| Driving speed | 12.5 r/min | |
| Platform rotation speed | ||

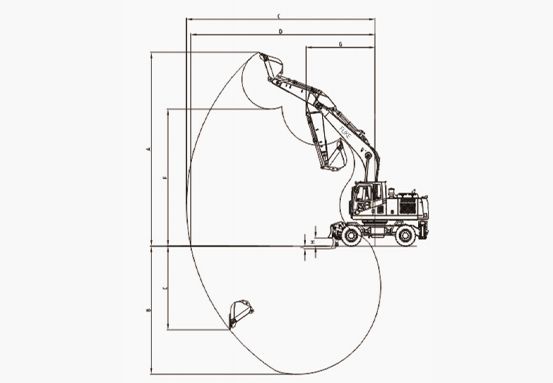

| Job parameters | 9725 mm | A |
| Maximum digging height | 6405 mm | B |
| Maximum digging depth | 9911 mm | C |
| Maximum digging radius | 9685 mm | D |
| Maximum digging radius on the ground Maximum vertical digging depth | 4177 mm | E |
| Maximum unloading height | 6882 mm | F |
| Minimum turning radius of working device | 3622 mm | G |

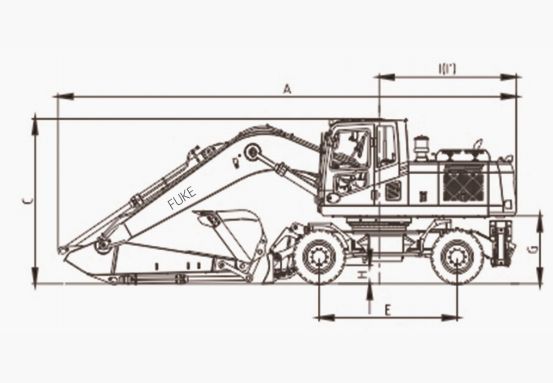

| Transport size | ||
| Overall length (transport state) | 9455 mm | |
| Overall width (transport state) | 2530 mm | |
| Overall height (transport state) | 2490 mm | |

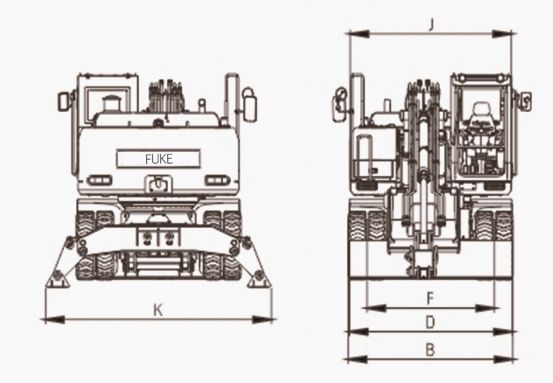

| Other parameters | ||
| Wheelbase | 2600 mm | E |
| Axle track | 1944mm | F |
| Counterweight ground clearance | 1223 mm | G |
| Minimum ground clearance | 350 mm | H |
| Tail length | 2353mm | I |
| Radius of tail gyration | 2450 mm | I' |
| Upper platform width | 2470 mm | J |
| Fuel tank capacity | 295L | |
| Hydraulic oil tank capacity | 165L |
