| Operating weight: | 32000kg |
| Standard bucket capacity: | 1.4 m3 |
| Rated power: | 194/2200 kW/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 32000kg | |
| Standard bucket capacity | 1.4m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 194/2200 kW/rpm | |
| Gradeability | 70%(35°) | |
| Maximum digging force of stick | 157 kN | |
| Bucket excavation | 201.5 kN | |
| Driving speed | 25km/h | |
| Platform rotation speed | 9.7 rpm | |

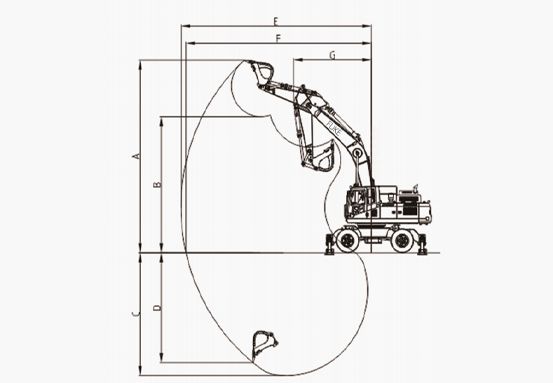

| Job Parameters | ||
| Maximum digging height | 10080 mm | A |
| Maximum digging depth | 7102 mm | B |
| Maximum digging radius | 6430 mm | C |
| Maximum digging radius on the ground | 5755 mm | D |
| Maximum vertical digging depth | 10460 mm | E |
| Maximum unloading height | 10185 mm | F |
| Minimum turning radius of working device | 4250 mm | G |
| Transport size | ||
| Overall length (transport state) | 10800 mm | |
| Overall width (transport state) | 3050 mm | |
| Overall height(transport state) | 3500 mm | |

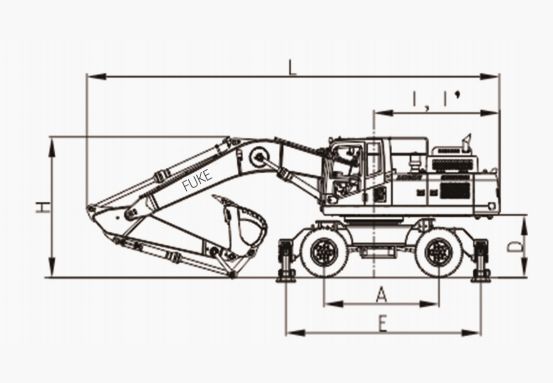

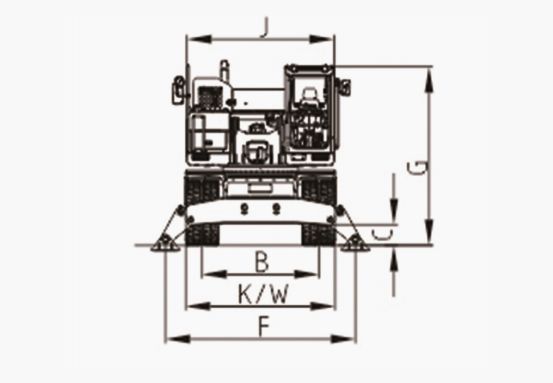

| Other parameters | ||
| Wheelbase | 3000 mm | A |
| Axle track | 2378mm | B |
| Minimum ground clearance | 400 mm | C |
| Counterweight ground clearance | 1563mm | D |
| Leg spacing | 5100mm | E |
| Width of outrigger | 3872 mm | F |
| The height of the top from the ground | 3500mm | G |
| Tail length | 3292 mm | I |
| Radius of tail gyration | 3300 mm | I |
