| Total Weight | 6600 kg |
| Standard bucket capacity | 0.23 m³ |
| Rated power | 45/2200 kW/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 3500 kg | |
| Standard bucket capacity | 0.26m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 45/2200 kW/rpm | |
| Gradeability | 70%(35°) | |
| Maximum digging force of stick | 26.1 kN | |
| Bucket excavation | 39.5 kN | |
| Driving speed | 25km/h | |
| Platform rotation speed | 10 rpm | |

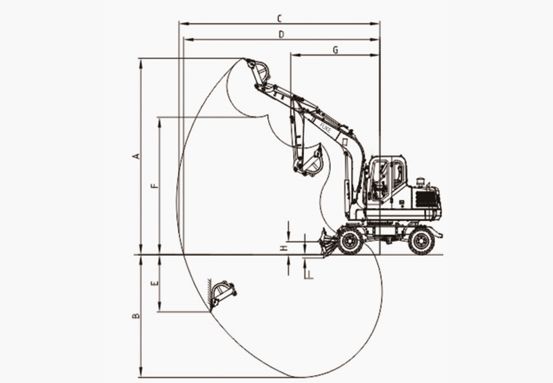

| Job Parameters | ||
| Maximum digging height | 5780 mm | A |
| Maximum digging depth | 3605 mm | B |
| Maximum digging radius | 6270 mm | C |
| Maximum lifting height of earth shovel | 6050 mm | D |
| Maximum digging depth of dozer | 2765 mm | E |
| Min Tail swing radius | 4040 mm | F |
| Minimum radius of gyration | 2750 mm | G |

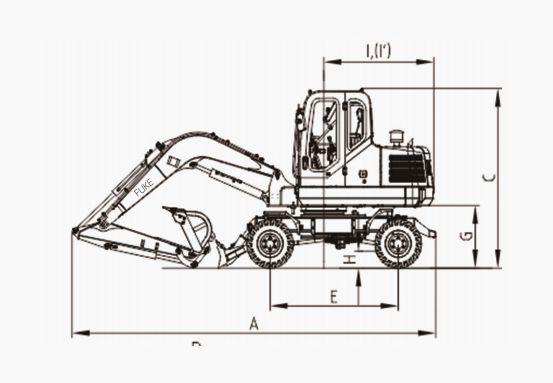

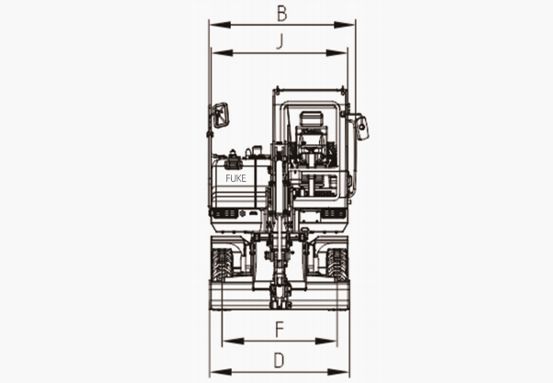

| Transport size | ||
| Overall length (transport state) | 6235 mm | |
| Overall width (transport state) | 1890 mm | |
| Overall height(transport state) | 2900 mm | |
| Other parameters | ||
| Wheelbase | 2200mm | E |
| Axle track | 1600 mm | F |
| Counterweight ground clearance | 1020mm | G |
| Minimum ground clearance | 320 mm | H |
| Tail length | 1890 mm | |
| Fueltank capacity | 105 L | |
| Hydraulic oil tank capacity | 110L | |
| Working pressure of slewing system | 200 bar |
Specification Parameter
